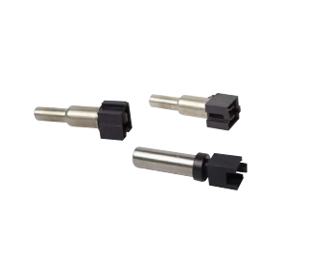

74/75J Temperature Sensor for Dishwashers/Washing Machines

Application

Washing machines, Dishwashers, Water heaters

The 74J and 75J series temperature sensors are primarily used in home appliances such as washing machines and dishwashers. The 74J is available in all-plastic and stainless steel designs. Both metal and plastic designs can be adapted to various applications with customized features and connector options. The 75J is an all-plastic design. UL certified models are available upon request.

Product Specifications

1. Thermal time constant: 10-22 seconds (depends on material) (Measured: 25℃ air to 85℃ stirred water, 63.2% ΔT)

2. Operating temperature range -40°C to 130°C

3. Dielectric strength 3750VAC / 0.5mA / 1 second

4. Stable performance, high accuracy
